CLASSIC MODELS

These may not be our newest scanners, but they still offer great value, performance, and reliability.
Classic model JoeScans make for affordable and easy upgrades that can greatly extend the life of your scanning system.

JS-25 SERIES SCANNERS

MX

Mid-range Standoff Workhorse

X3

3 Laser Carriage Scanner

WX

Wide Angle Transverse Workhorse

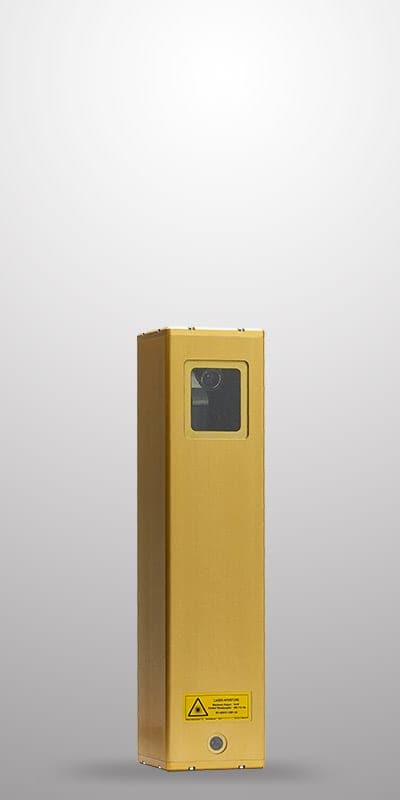

MX

JS-25 FAMILY

3D Laser Scanner

The MX has a versatile scanning envelope that can handle anything from boards to small-to-large logs. It works well on Lineal Edgers or Log Systems.

  • Standard Ethernet cable interface
  • Extended laser life w/ pulsed-laser technology
  • Single PC system
  • Intuitive calibration
  • Safety-friendly class 3R laser
Product FamilyJS-25
Model NameMX
Scan TypeLineal
Primary ApplicationLineal Edgers
Secondary ApplicationLog Systems
Number of lasers1
Number of cameras1
Upgraded modelJS-50WX

JoeScan MX scanners deliver great results for the following systems:

  • Lineal Edgers

  • Sharp Chain Infeed

  • Merchandising

An easy-to-use mid-range lineal scanner for a variety of sawmill applications.

   DOWNLOAD JS-25 MX DATA SHEET PDF

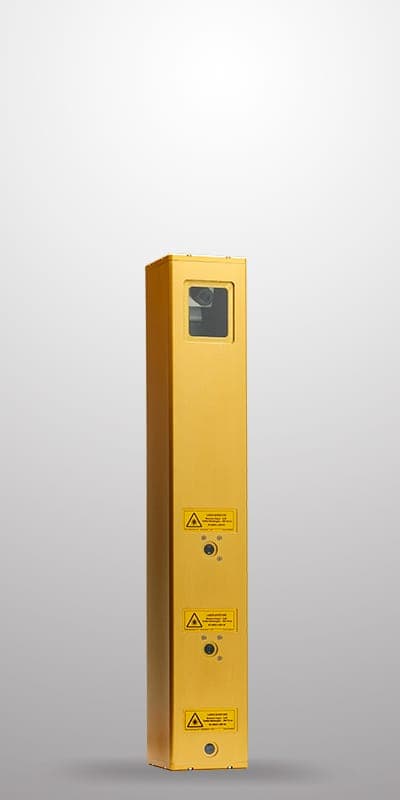

X3

JS-25 FAMILY

3D Laser Scanner

The X3 delivers higher-density snapshot and short-infeed scanning. With three lasers, it can scan the entire length of a log in just 6 inches of travel. It works well in Carriage HeadrigSharp Chain and Lineal Edger settings.

  • Standard Ethernet cable interface
  • Extended laser life w/ pulsed-laser technology
  • Single PC system
  • Intuitive calibration
  • Safety-friendly class 3R laser
Product FamilyJS-25
Model NameX3
Scan TypeSnapshot
Primary ApplicationLog Scanning
Secondary ApplicationLineal Edgers
Number of lasers3
Number of cameras1
Upgraded modelJS-25 X6B

JoeScan X3 scanners deliver great results for the following systems:

  • Carriage Headrigs

  • Lineal Edgers

  • Sharp Chain Infeed

  • Merchandising

A 3 laser scanner for high density snapshot scanning.

   DOWNLOAD JS-25 X3 DATA SHEET PDF

X3

JS-25 FAMILY

3D Laser Scanner

The X3 delivers higher-density snapshot and short-infeed scanning. With three lasers, it can scan the entire length of a log in just 6 inches of travel. It works well in Carriage HeadrigSharp Chain and Lineal Edger settings.

  • Standard Ethernet cable interface
  • Extended laser life w/ pulsed-laser technology
  • Single PC system
  • Intuitive calibration
  • Safety-friendly class 3R laser
Product FamilyJS-25
Model NameX3
Scan TypeSnapshot
Primary ApplicationLog Scanning
Secondary ApplicationLineal Edgers
Number of lasers3
Number of cameras1
Upgraded modelJS-25 X6B

JoeScan X3 scanners deliver great results for the following systems:

  • Carriage Headrigs

  • Lineal Edgers

  • Sharp Chain Infeed

  • Merchandising

A 3 laser scanner for high density snapshot scanning.

   DOWNLOAD JS-25 X3 DATA SHEET PDF

WX

JS-25 FAMILY

3D Laser Scanner

The WX exchanges depth of view for a wider field of view, allowing each scanner to see more of the length of each board. It also delivers an increased scan speed of up to 850 profiles per second, which provides finer coverage of the wane on a board. It works well in a Transverse Scanning setting.

  • Standard Ethernet cable interface
  • Extended laser life w/ pulsed-laser technology
  • Single PC system
  • Intuitive calibration
  • Safety-friendly class 3R laser
Product FamilyJS-25
Model NameWX
Scan TypeTransverse
Primary ApplicationTrimmer / Sorters
Secondary ApplicationTransverse Edgers
Number of lasers1
Number of cameras1
Upgraded modelJS-50WX

JoeScan JS-25 WX scanners deliver great results for the following systems:

  • Transverse Edgers

  • Trimmer / Sorters

  • Merchandising

An easy-to-use wide-angle transverse scanner for a variety of sawmill applications.

   DOWNLOAD JS-25 WX DATA SHEET PDF

OTHER CLASSIC MODELS

Our Product Naming Convention

JS-25MX
Product FamilyProduct Model

Higher numbers designate newer product families.
Similar product model suffixes are intended for similar applications.

ModelTypeDesccriptionTechnical SpecsYear IntroducedLast Year ProducedStill Supported?Suggested Upgrade

JS-20 SX

JS-25 SX

Standard rangeThe SX provides lineal scanning of boards, cants and small to medium-size logs. It offers a combination of accuracy, scan speed and both field and depth of view. It works well in a Lineal Edger or Sharp Chain setting.

NoteJoeScan recommends JS-25 MX model scanners instead of JS-25 SX models. The JS-25 MX’s performance and specifications are indistinguishable from the JS-25 SX within the JS-25 SX’s specified field of view and depth of view ranges.

JS-20 SX

JS-25 SX

20082014YesJS-25 MX

JS-20 WX

Wide angleThe WX is designed for transverse scanning for trimmers and edgers. It exchanges depth of view for a wider field of view, allowing each scanner to see more of the length of each board. The reduced depth of view also delivers an increased scan speed, which provides finer coverage of the wane on a board. It works well in a Transverse Scanning setting.

JS-20 WX

20082014YesJS-25 WX

JS-20 MX

Medium rangeThe MX has a versatile scanning envelope that can handle anything from boards to medium-to-large logs. It works well on Lineal Edgers or Log Systems.

JS-20 MX

20082014YesJS-25 MX

JS-20 MX100

Outdoor editionThe MX100oe is designed for outdoor use. The combination of high-speed digital imaging and more powerful lasers allows the MX100oe to overcome brighter-than-normal light conditions. It works well in log yard settings to sort and measure incoming log volume and in lineal bucking operations.

JS-20 MX100

20092015Yes

JS-20 X1

JS-25 X1

Extended rangeThe X1 has a single laser and is well-suited for lineal scanning of larger logs. Its standoff of more than 10 feet allows you to place it further from the logs if your configuration obstructs standard scanner positioning. It works well in Sharp Chain settings.

JS-20 X1

JS-25 X1
20082014Yes

JS-20 X2

JS-25 X2

Dual laserThe X2 offers high-density snapshot and short-infeed scanning. Its dual lasers scan the entire length of a log in 12 inches of travel. It works well in Carriage HeadrigSharp Chain and Lineal Edger settings.

Contact Us for technical details

20082014Yes

JS-20 X3

Triple laserThe X3 delivers higher-density snapshot and short-infeed scanning. With three lasers, it can scan the entire length of a log in just 6 inches of travel. It works well in Carriage HeadrigSharp Chain and Lineal Edger settings.

JS-20 X3

20082014Yes

OTHER CLASSIC MODELS

Our Product Naming Convention

JS-25MX
Product FamilyProduct Model

Higher numbers designate newer product families.

Similar product model suffixes are intended for similar applications.

 Scroll right for additional info

ModelTypeDesccriptionTechnical SpecsYear IntroducedLast Year ProducedStill Supported?Suggested Upgrade

JS-20 SX

JS-25 SX

Standard rangeThe SX provides lineal scanning of boards, cants and small to medium-size logs. It offers a combination of accuracy, scan speed and both field and depth of view. It works well in a Lineal Edger or Sharp Chain setting.

NoteJoeScan recommends JS-25 MX model scanners instead of JS-25 SX models. The JS-25 MX’s performance and specifications are indistinguishable from the JS-25 SX within the JS-25 SX’s specified field of view and depth of view ranges.

JS-20 SX

JS-25 SX

20082014YesJS-25 MX

JS-20 WX

Wide angleThe WX is designed for transverse scanning for trimmers and edgers. It exchanges depth of view for a wider field of view, allowing each scanner to see more of the length of each board. The reduced depth of view also delivers an increased scan speed, which provides finer coverage of the wane on a board. It works well in a Transverse Scanning setting.

JS-20 WX

20082014YesJS-25 WX

JS-20 MX

Medium rangeThe MX has a versatile scanning envelope that can handle anything from boards to medium-to-large logs. It works well on Lineal Edgers or Log Systems.

JS-20 MX

20082014YesJS-25 MX

JS-20 MX100

Outdoor editionThe MX100oe is designed for outdoor use. The combination of high-speed digital imaging and more powerful lasers allows the MX100oe to overcome brighter-than-normal light conditions. It works well in log yard settings to sort and measure incoming log volume and in lineal bucking operations.

JS-20 MX100

20092015Yes

JS-20 X1

JS-25 X1

Extended rangeThe X1 has a single laser and is well-suited for lineal scanning of larger logs. Its standoff of more than 10 feet allows you to place it further from the logs if your configuration obstructs standard scanner positioning. It works well in Sharp Chain settings.

JS-20 X1

JS-25 X1
20082014Yes

JS-20 X2

JS-25 X2

Dual laserThe X2 offers high-density snapshot and short-infeed scanning. Its dual lasers scan the entire length of a log in 12 inches of travel. It works well in Carriage HeadrigSharp Chain and Lineal Edger settings.

Contact Us for technical details

20082014Yes

JS-20 X3

Triple laserThe X3 delivers higher-density snapshot and short-infeed scanning. With three lasers, it can scan the entire length of a log in just 6 inches of travel. It works well in Carriage HeadrigSharp Chain and Lineal Edger settings.

JS-20 X3

20082014Yes

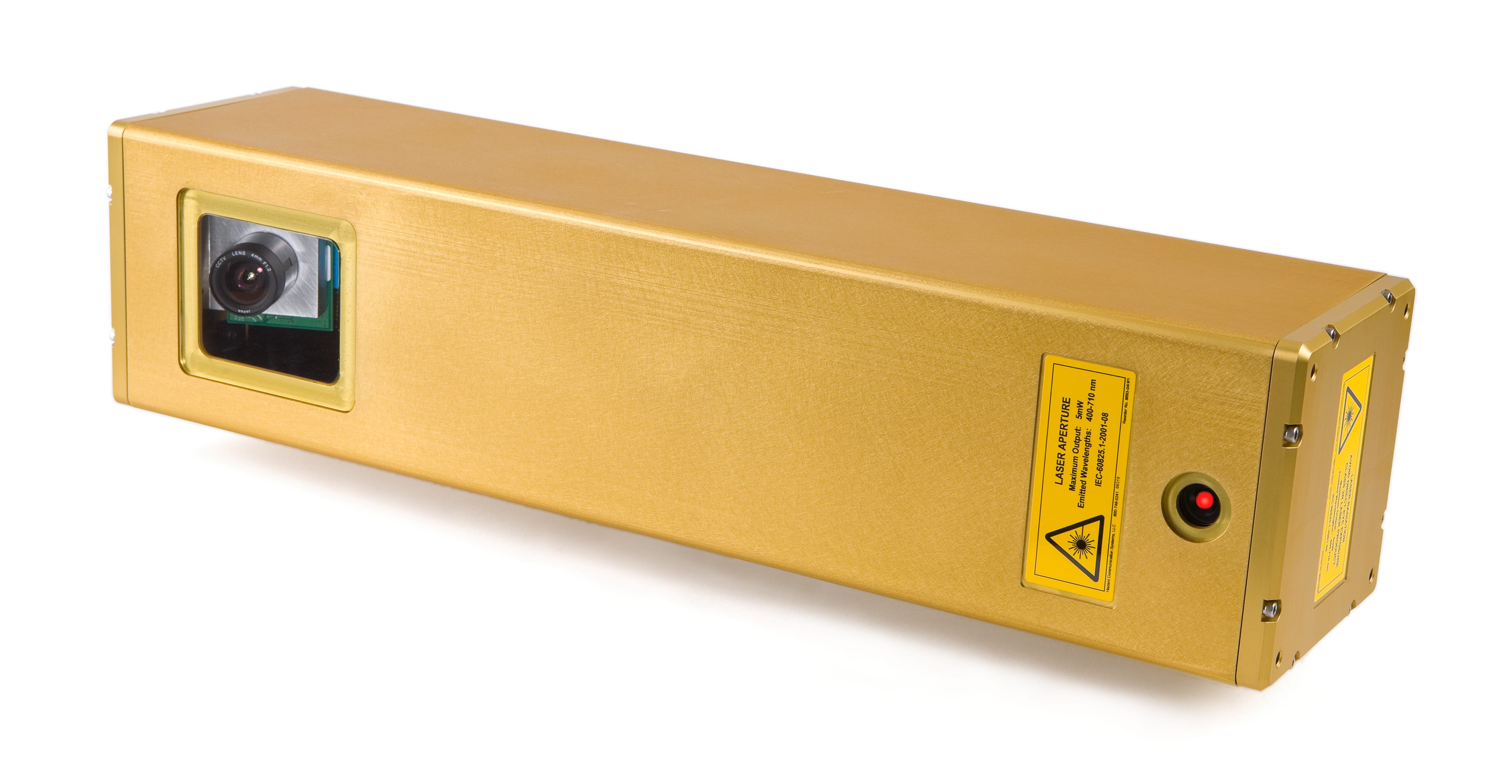

JS-20 WX circa 2008

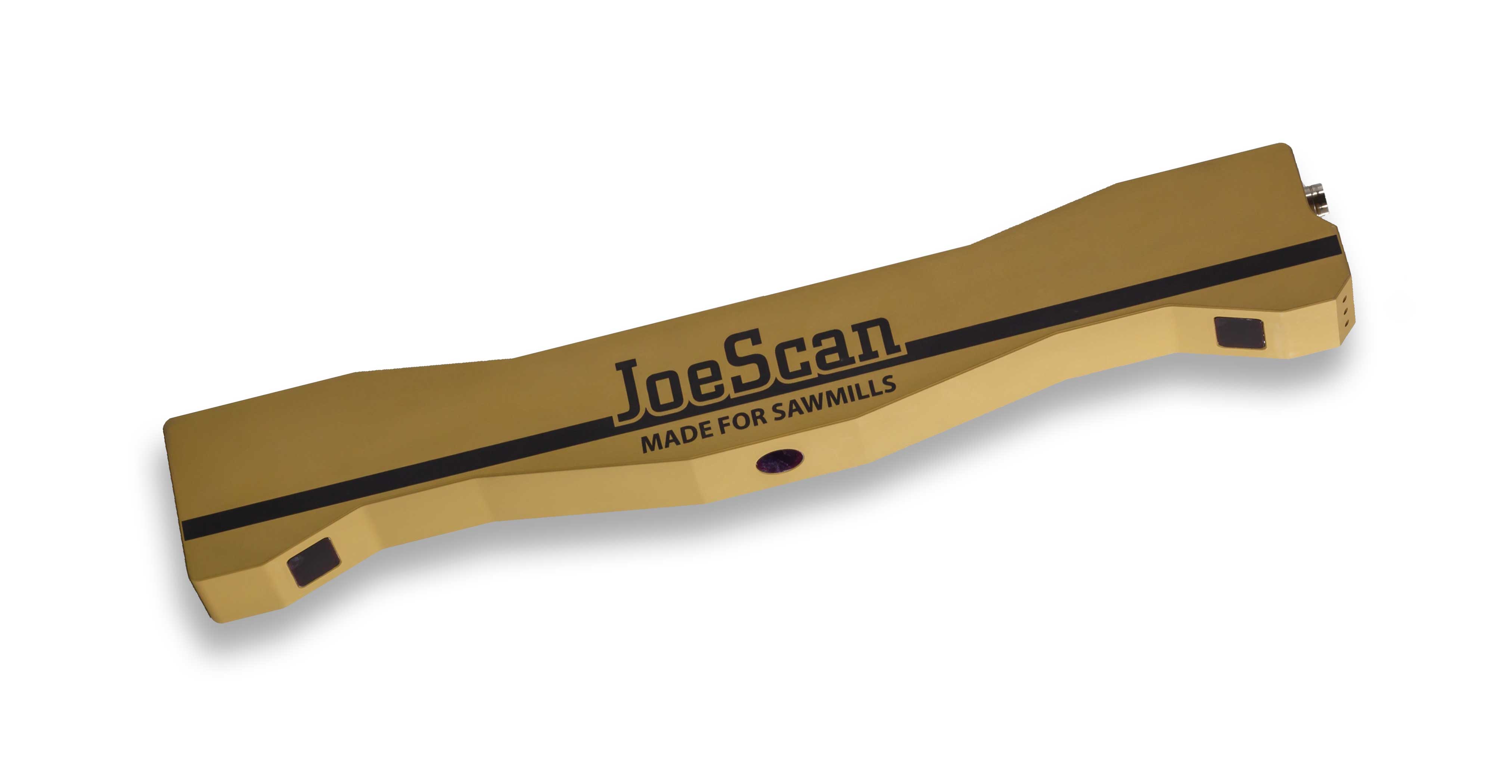

JS-50 WX new for 2019

COMMITMENT TO SUPPORT

We know you count on our scanners to keep you sawing.
That’s why we pride ourselves in offering outstanding support on all of our products.

Our 10 year support policy lets you know we’ll be here to help. But we aim to go above and beyond, and are still supporting each and every JoeScan we’ve ever made.

10 years, 15 years, and beyond… we want to support your JoeScans for as long as you need us to.

SUPPORT POLICY

We want upgrade decisions to be made by you, not by “planned obsolescence”.

That’s why we support every new JoeScan for 10 years from the date we ship to you. You can count on us to provide after-warranty service and parts during this period.

PRODUCT WARRANTY

We stand by everything we make.

If there’s a defect with one of your JoeScans, we’ll make it right. Simple as that.
