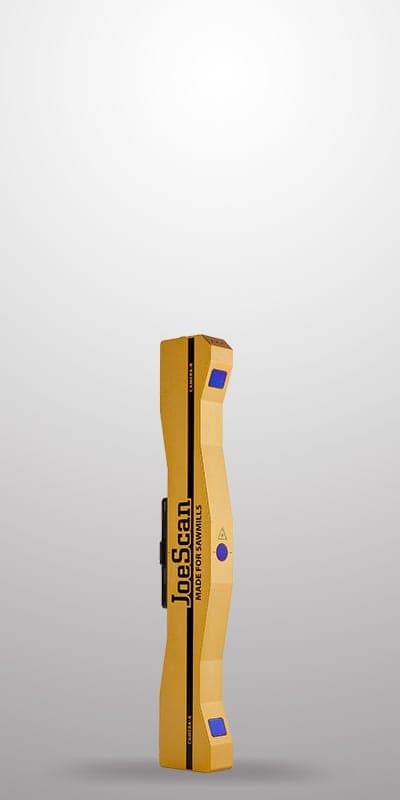

JS-50 WX Scan Head

The one scanner for your whole sawmill.

   DOWNLOAD JS-50WX DATA SHEET PDF

JS-50 WX

LINEAL & TRANSVERSE

3D Laser Scanner

Our latest dual-camera scanner brings next generation speed and data density to your sawmill. Both lineal and transverse applications pose no problems for JS-50 WX. A versatile scanning envelope ensures that this model delivers great results across your entire mill.

  • Binocular vision eliminates occlusion and finds steep wane
  • Snap mount arrives pre-calibrated
  • Smaller, lighter, and easier to install
  • Single cable power over ethernet (PoE) interface
  • Extended laser life w/ pulsed-laser technology
  • Single PC system
  • Intuitive calibration
  • Safety-friendly class 3R laser
Product FamilyJS-50
Model NameWX
Scan TypeLineal & Transverse
ApplicationMill-wide scanning
Number of lasers1
Number of cameras2

JoeScan JS-50 WX scanners deliver great results for the following systems:

  • Trimmer/Sorter

  • Bucking System

  • Lineal and Transverse Edgers

  • Sharp Chain Infeed

  • End Dogger/EDLF/C-frame

  • Double-Length Infeed

  • Chip and Saw

  • Integrated Sawline

  • Log yard & Merchandising

JS-50 WX is
COMING SOON

JS-50 WX

LINEAL & TRANSVERSE

3D Laser Scanner

JS-50 WX Scan Head

The one scanner for your whole sawmill.

   DOWNLOAD JS-50WX DATA SHEET

Our latest dual-camera scanner brings next generation speed and data density to your sawmill. Both lineal and transverse applications pose no problems for JS-50 WX. A versatile scanning envelope ensures that this model delivers great results across your entire mill.

  • Binocular vision eliminates occlusion and finds steep wane
  • Snap mount arrives pre-calibrated
  • Smaller, lighter, and easier to install
  • Single cable power over ethernet (PoE) interface
  • Extended laser life w/ pulsed-laser technology
  • Single PC system
  • Intuitive calibration
  • Safety-friendly class 3R laser
Product FamilyJS-50
Model NameWX
Scan TypeLineal & Transverse
ApplicationMill-wide scanning
Number of lasers1
Number of cameras2

JoeScan JS-50 WX scanners deliver great results for the following systems:

  • Trimmer/Sorter

  • Bucking System

  • Lineal and Transverse Edgers

  • Sharp Chain Infeed

  • End Dogger/EDLF/C-frame

  • Double-Length Infeed

  • Chip and Saw

  • Integrated Sawline

  • Log yard & Merchandising

JS-50 WX is
COMING SOON

16 years of sawmill scanning experience pay off in our best scanner yet. We’ve improved just about everything, maximizing reliability & simplicity.

MADE TO BE

SIMPLE

MADE TO BE

RELIABLE

MADE FOR

SAWMILLS

FEATURES

QuikLock Mount

Lets you swap heads in seconds and removes the need for on-site calibration.

Binocular vision

2 cameras eliminate occlusion and find steep wane.

Single cable PoE

Just one cable on JS-50.
Half the cables = half the fuss.

Low-level API

Get the data you need, in the way you want it.

Pulsed-lasers

Prolongs the life of your scanner and gives greater placement flexibility.

5 year warranty

Along with our 10 year support policy.

SPECS

JS-50 WX Scan Zone
JS-50 can collect data outside of these ranges with reduced specs

Accuracy (near)+/- 0.005 inches / 0.13mm
Accuracy (far)+/- 0.02 inches / 0.5mm
SpeedUp to 2000 scans per second
Density60 points per inch / 24 points per cm
Points per profile1456
Laser TypePulsed, Class 3R
Laser ColorVisible red
ComputerSingle standard PC per system
Data InterfaceGigabit Ethernet, IEEE 802.3 af Power over Ethernet (PoE) switch
Weight5 lbs / 2.3kg
Operating Temp0° to 120°F / -20° to 50°C
Storage Temp-40° to 176°F / -40° to 80°C
LightingFully operational between indoor lighting (no sunlight) and complete darkness

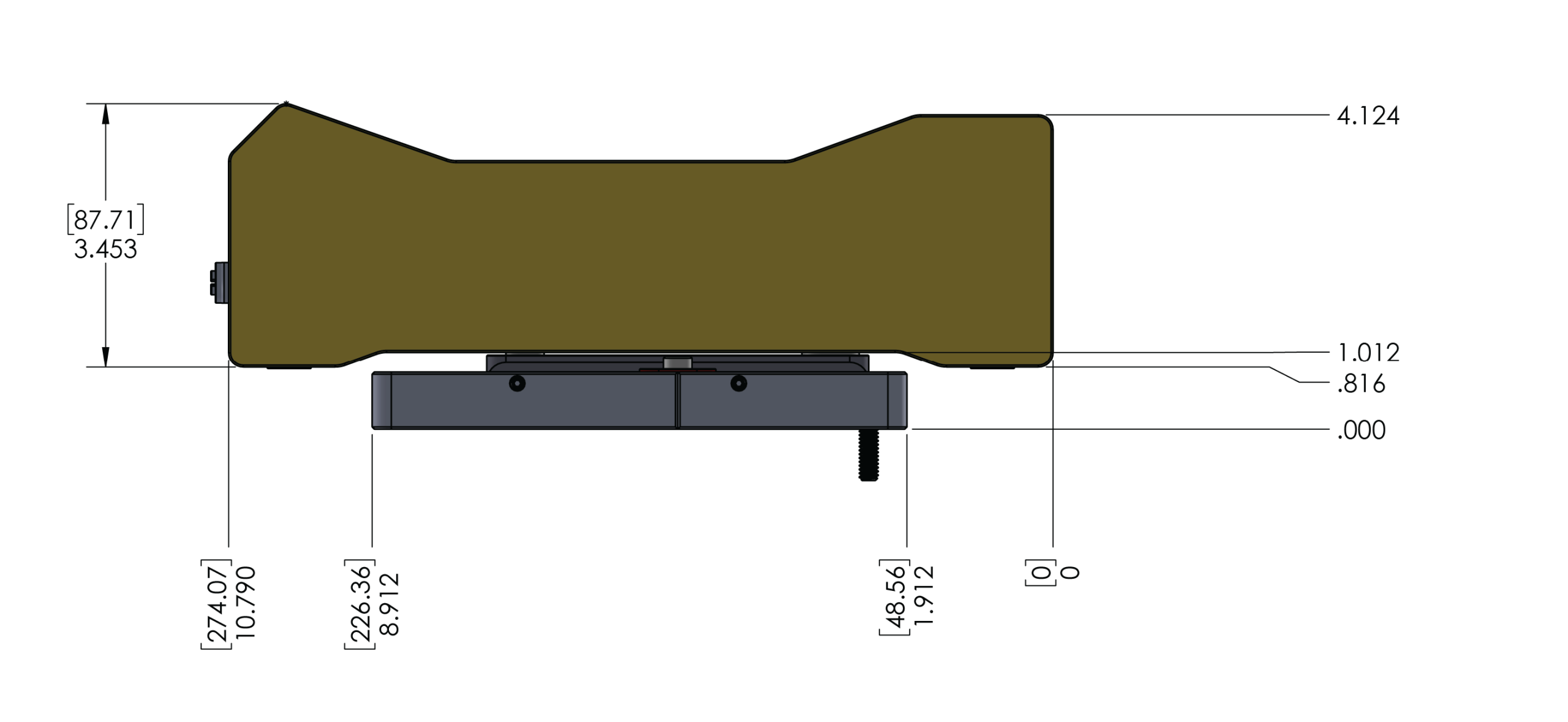

DIAGRAMS

Click to enlarge images.
