CABLES

JS-50 PoE CABLE

JS-50 is coming soon to a sawmill near you.

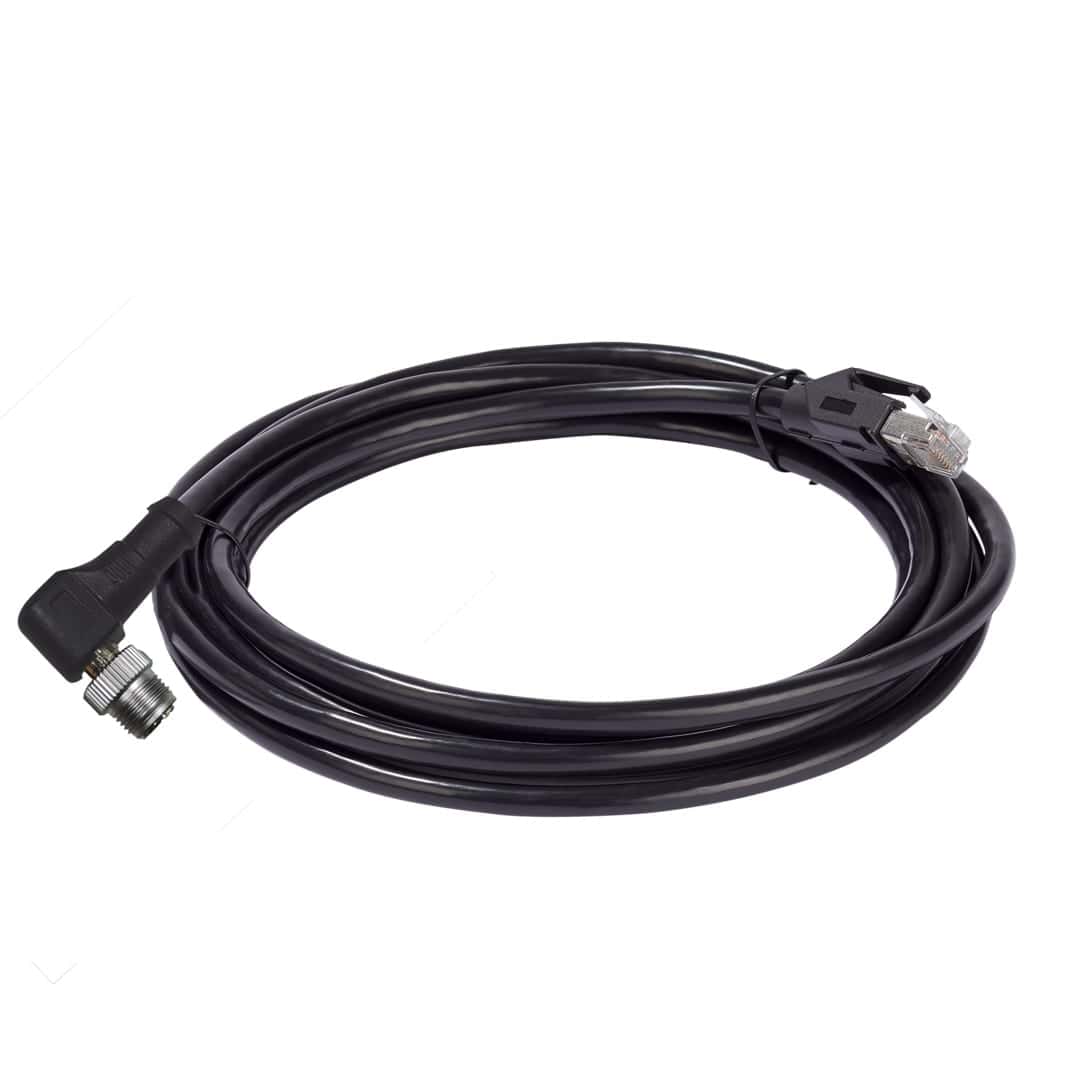

JS-50 PoE cable

This Power-over-Ethernet cable provides both power and data connection for JS-50 family scan heads.

LENGTH OPTIONS: 10m, 16m, 30m, 50m

TERMINATION: Right-angle 8 pole X-coded M12 jack, Cat6A and RJ45 ethernet connector.

RATED FOR: 10GBit Ethernet (IEEE 802.3an)

QUANTITY: 1 cable required per JS-50 scan head.

PART NUMBERS: M12_10m, M12_16m, M12_30m, M12_50m

View JS-50 cable pin-out

FOR USE WITH

JS-50 family scan heads

JS-25 POWER CABLE

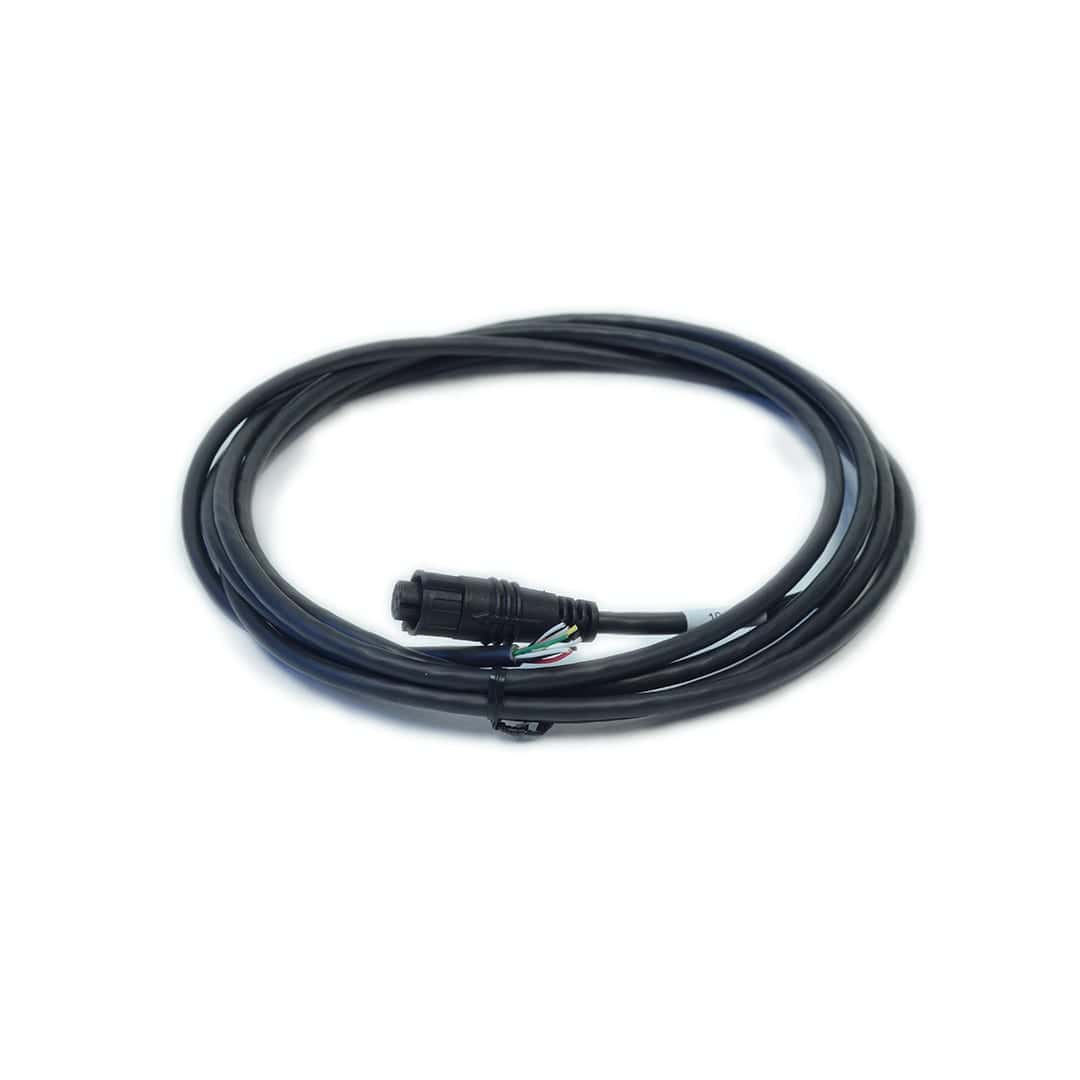

JS-25 Power Cable

This cable provides power, sync signals, and encoder signals for all JS-25 scan heads and some late model JS-20 scanners. You may also see it referred to as the control cable.

LENGTH OPTIONS: 20 ft. ± 3″, 35 ft. ± 5″, 100 ft. ± 1′, 150 ft. ± 1′,

TERMINATION:  iCONN Systems waterproof 8-pin connector and un-terminated pigtails

QUANTITY: (1) power cable required per JS-20 and JS-25 scan head. X6B scanners require (2) power cables and (2) data cables.

PART NUMBERS: INT8_20ft, INT8_35ft, INT8_100ft, INT8_150ft

View JS-25/JS-20 cable specifications

FOR USE WITH

JS-25 X6B Scan Head
JS-25 family scanners

JS-25 DATA CABLE

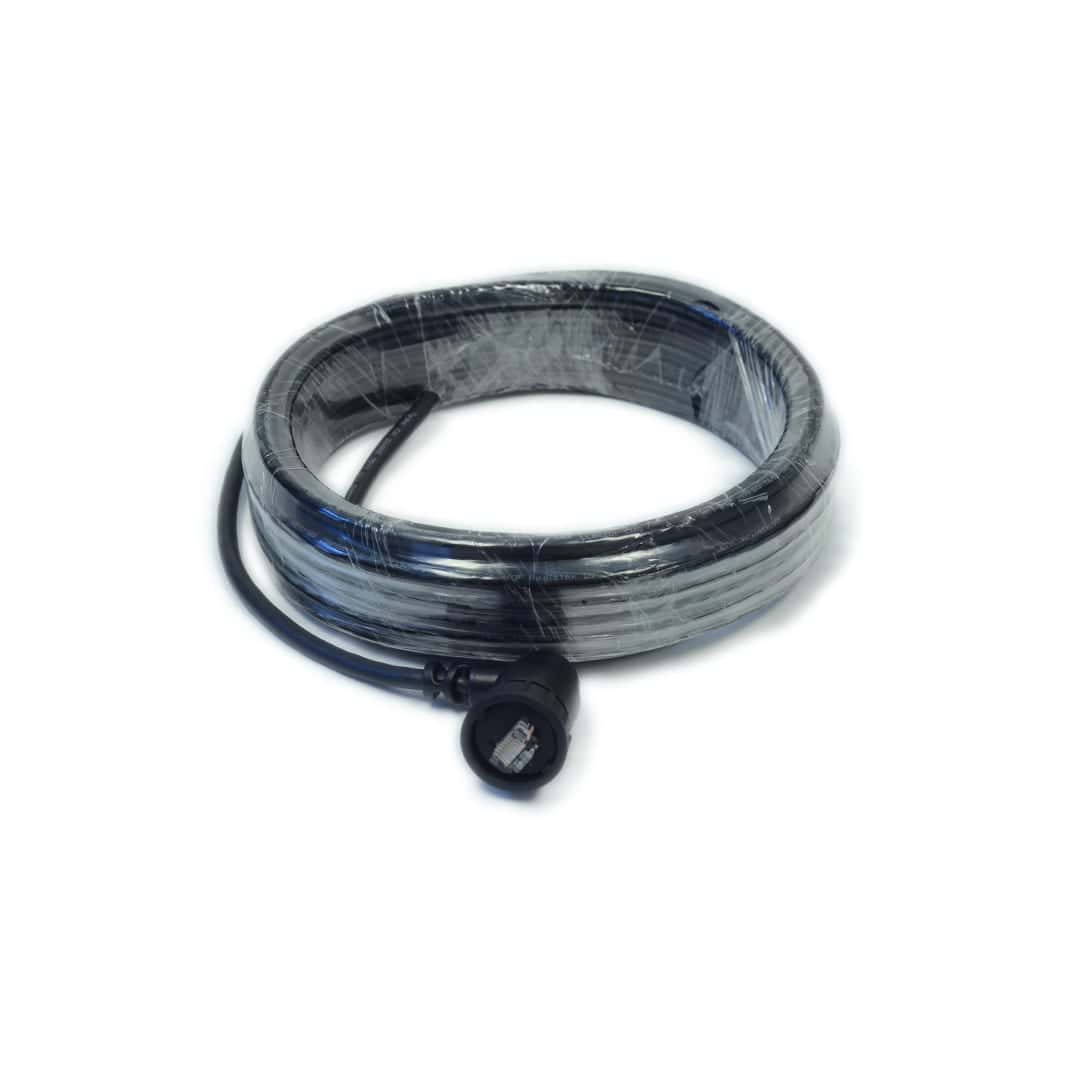

JS-25 Ethernet Data Cable

This Ethernet cable provides two-way data communication for all JS-25 scanners and late model JS-20 family scanners.

LENGTH OPTIONS: 10 meter, 30 meter, 50 meter

TERMINATION:  sealed Ethernet connector and un-terminated pigtails

QUANTITY: (1) data cable required per JS-20 and JS-25 scan head. X6B scanners require (2) power cables and (2) data cables.

PART NUMBERS: LTW_10M, LTW_30M, LTW_50M, LTW_CT (cut to custom length)

View JS-25/JS-20 cable specifications

FOR USE WITH

JS-25 X6B Scan Head
JS-25 family scanners

QUESTIONS ABOUT CABLES

Looking for cables for your JS-20 scanners? Not sure which cables you need?

Click below to email our service department for help.
Be sure to include the serial number of the scanner in question.

MOUNTS

JS-50 QuikLock MOUNT

JS-50 is coming soon to a sawmill near you.
JS-50 QuickLock Mount

This easy-to-use mount allows you to install and swap JS-50 scanners in seconds.

FEATURES:

  • JS-50 scanners come pre-calibrated to the mount, making hot-swaps quick and painless
  • Single 3/16″ hex bolt needs just a half turn to lock and release your scanner
  • Rugged anodized aluminum construction w/ convenient centering lines

PART NUMBER: SA-07001-007-00

FOR USE WITH

JS-50 family scan heads

X6B 3-POINT MOUNT KIT

JS-25 X6B 3-Point Mount Kit

This mount kit is designed for the installation of JS-25 X6B scanners.

Kit includes: (1) single-point end bracket, (1) double-point end bracket and (4) 18-8 SS 1/4-20 x 3/8in hex-head bolts

Click here for X6B single-point mount specifications. (see below for double-point end bracket)

PART NUMBER: SA-07001-005-01

FOR USE WITH

JS-25 X6B Scan Head

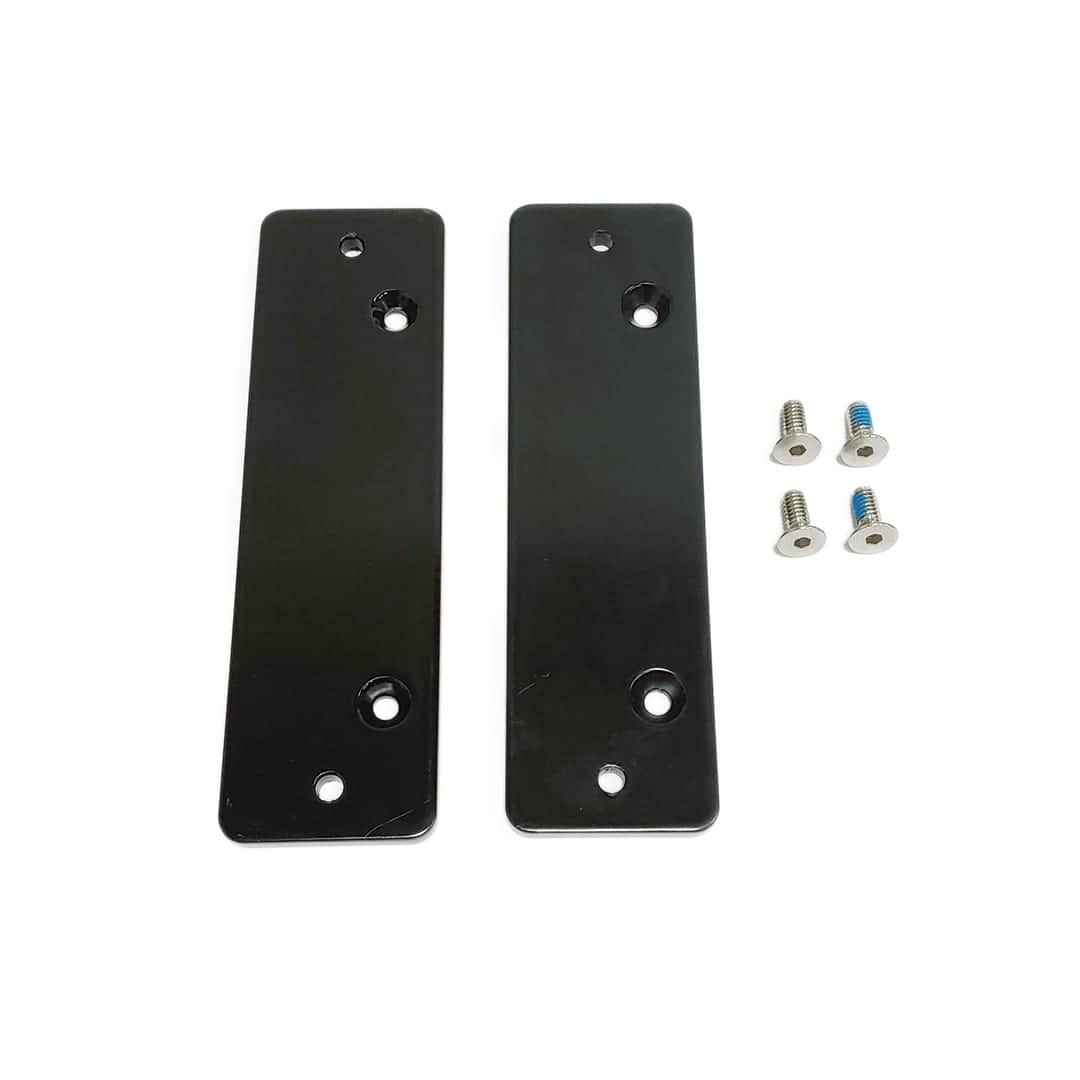

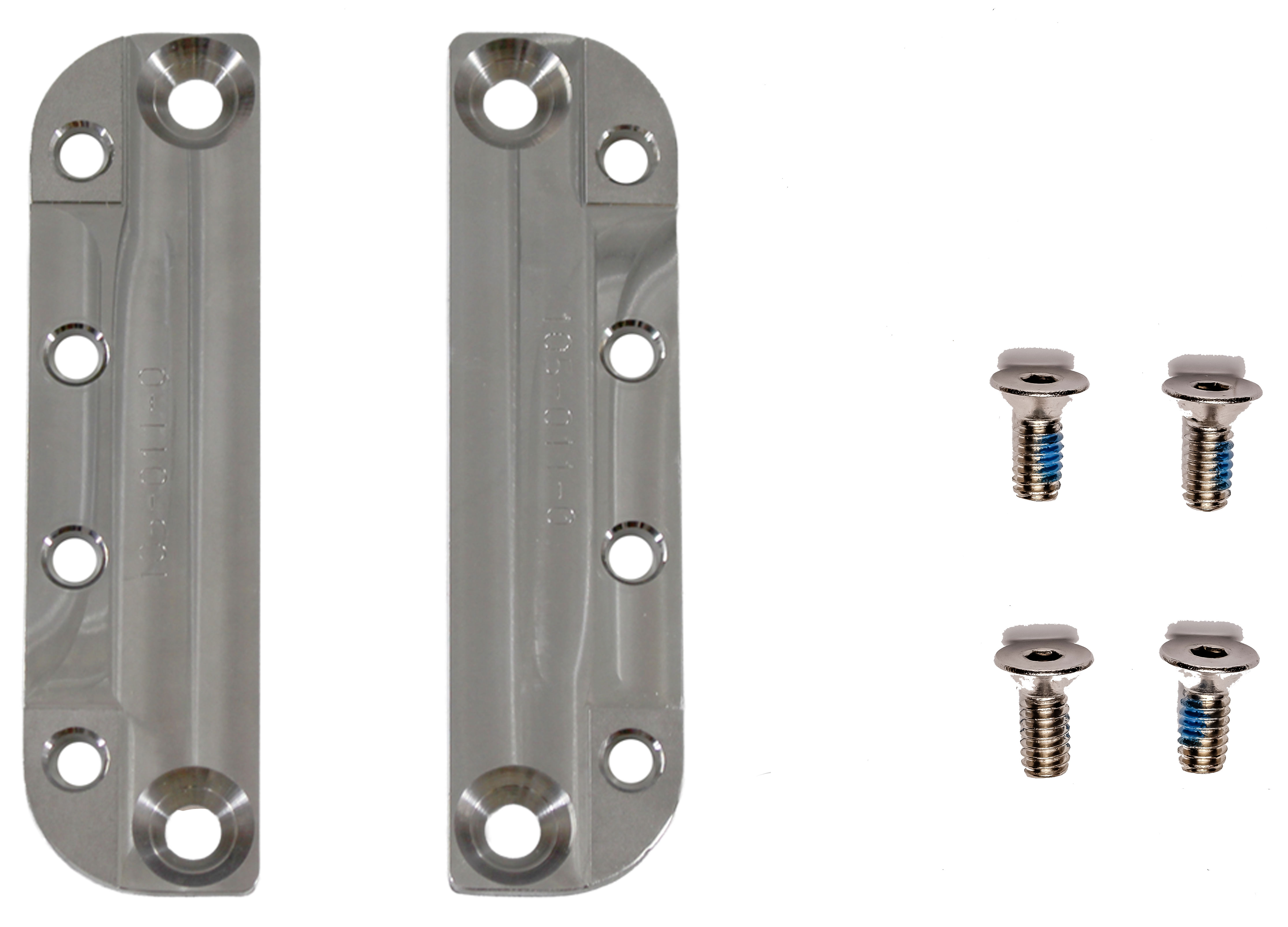

X6B 4-POINT MOUNT KIT

This mount kit is designed for the installation of JS-25 X6B scanners.

Kit includes: (2) double-point end bracket and (4) 18-8 SS 1/4-20 x 3/8in hex-head bolts

Click here for X6B double-point mount specifications.

PART NUMBER: SA-07001-006-01

FOR USE WITH

JS-25 X6B Scan Head

JS-25 STANDARD MOUNT KIT

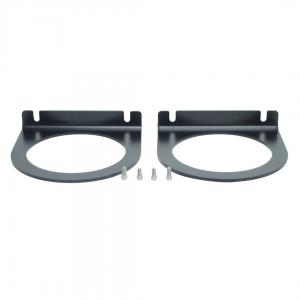

JS-25 Standard Mount Kit

These open-slot standard end brackets allow for mounting and rotational adjustment of all JS-20 and JS-25 scanners, with the exception of the X6B.

Kit includes: (2) standard end brackets and (8) SCS 1/4-20 x 1/2 screws

Click here for JS-25 standard mount specifications.

*Limited quantities available in blue.

PART NUMBER: SA-07001-001-00

FOR USE WITH

JS-25 family scanners
JS-20 Classic Models

JS-25 120-BT MOUNT KIT

JS-25 120-BT Mount Kit

These internal-slot end brackets have a slightly smaller footprint than the standard mount.

Kit includes: (2) 120-BT end brackets and (8) SCS 1/4-20 x 1/2 screws

Click here for JS-25 120-BT mount specifications.

PART NUMBER: SA-07001-003-00

FOR USE WITH

JS-25 family scanners
JS-20 Classic Models

JS-25 MIXED MOUNT KIT

JS-25 Mixed Mount Kit

The internal-slot end brackets have a slightly smaller footprint than the standard mount.

Kit includes: (1) standard end bracket, (1) 120-BT end bracket, and (8) SCS 1/4-20 x 1/2 screws

See above for specifications for each bracket.

PART NUMBER: SA-07001-004-00

FOR USE WITH

JS-25 family scanners
JS-20 Classic Models

SCANSYNC

ScanSync MODULE

JS-50 and ScanSync are coming soon to a sawmill near you.

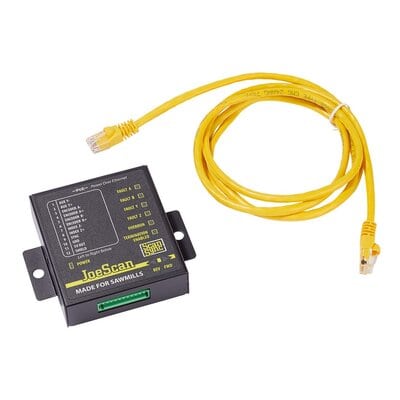

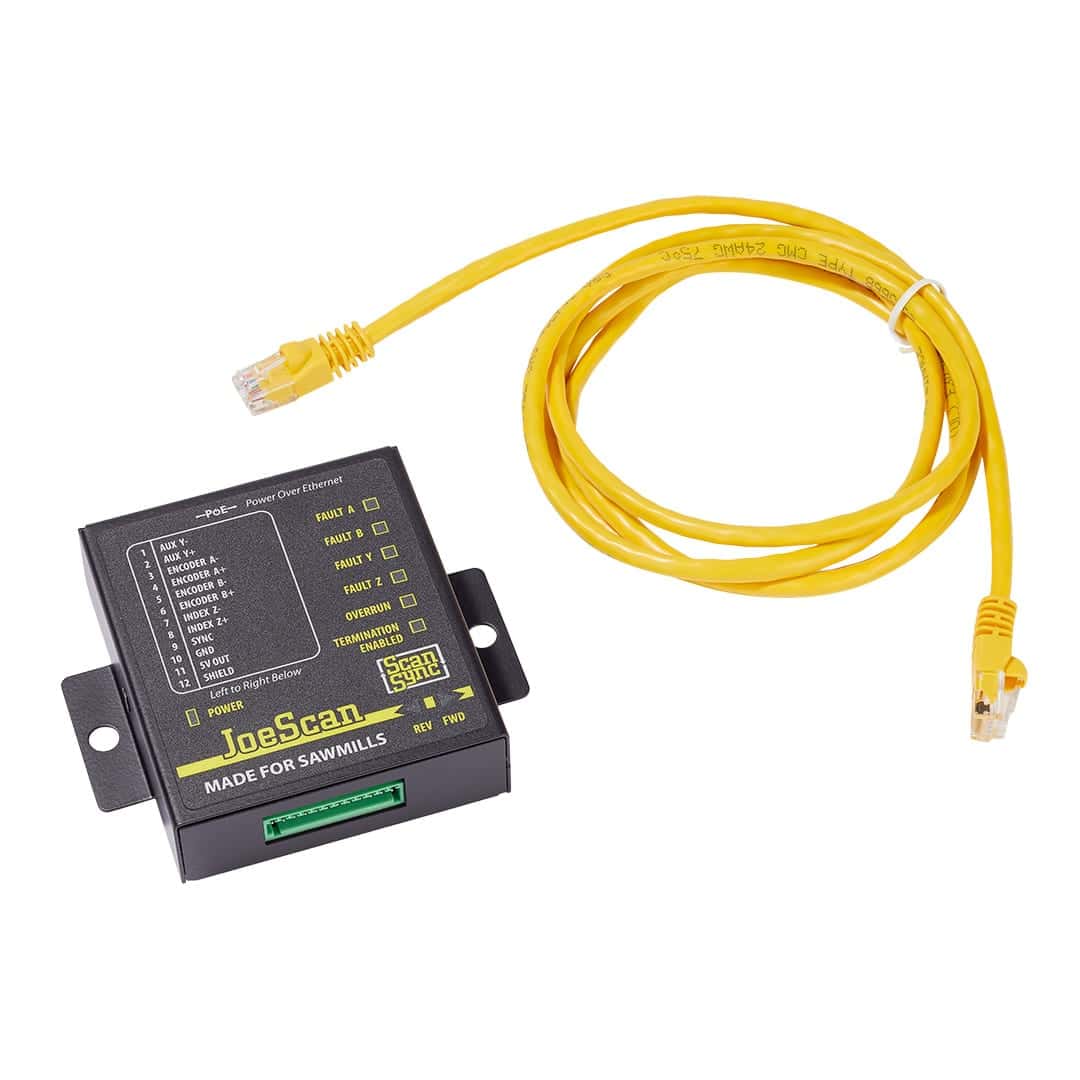

Scan Sync Module with patch cable

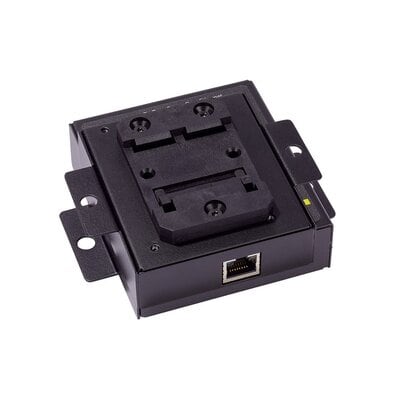

ScanSync Module continuously broadcasts timing and encoder information to keep JS-50 scan heads in sync with each other, and with your conveyance system.

FEATURES:

  • A single ScanSync can broadcast to any number of JS-50 scan heads on the same network
  • LED indicators help troubleshoot network and encoder problems
  • Removable quick-release DIN rail mount makes electrical box installation a breeze
  • Includes (1) Ethernet patch cable and (1) encoder wiring harness

You’ll need (1) ScanSync module per JS-50 scanner network

View ScanSync to Quadrature Encoder cable pinout

PART NUMBER: JS-00503-001-02

FOR USE WITH

JS-50 family scan heads
